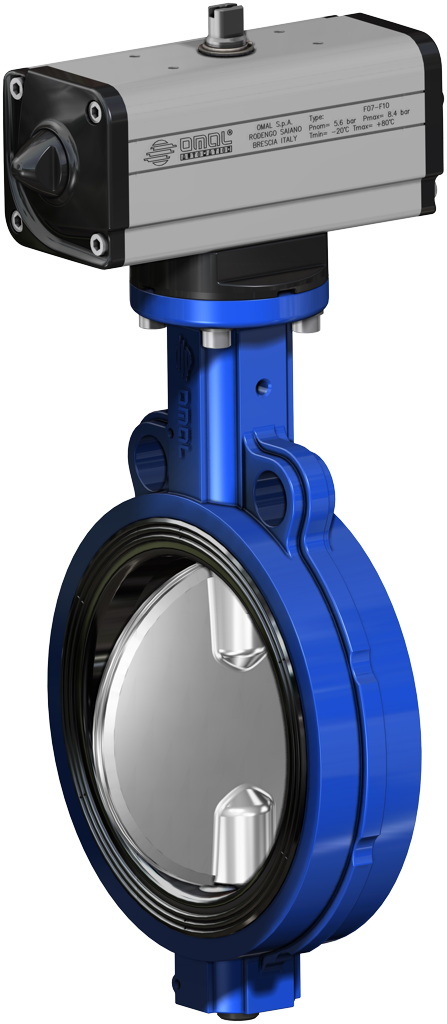

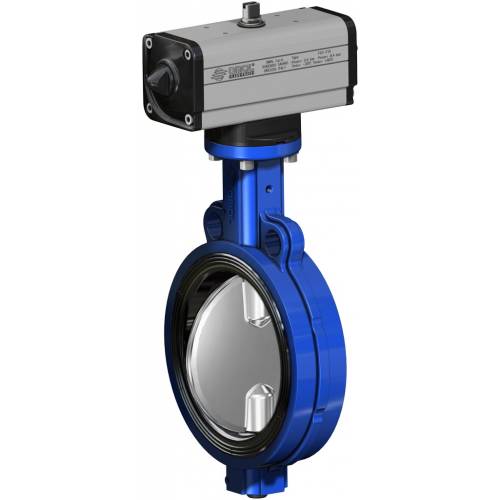

Válvula de borboleta Item 375-376-377
Atuador pneumático DA - Lente em ferro fundido

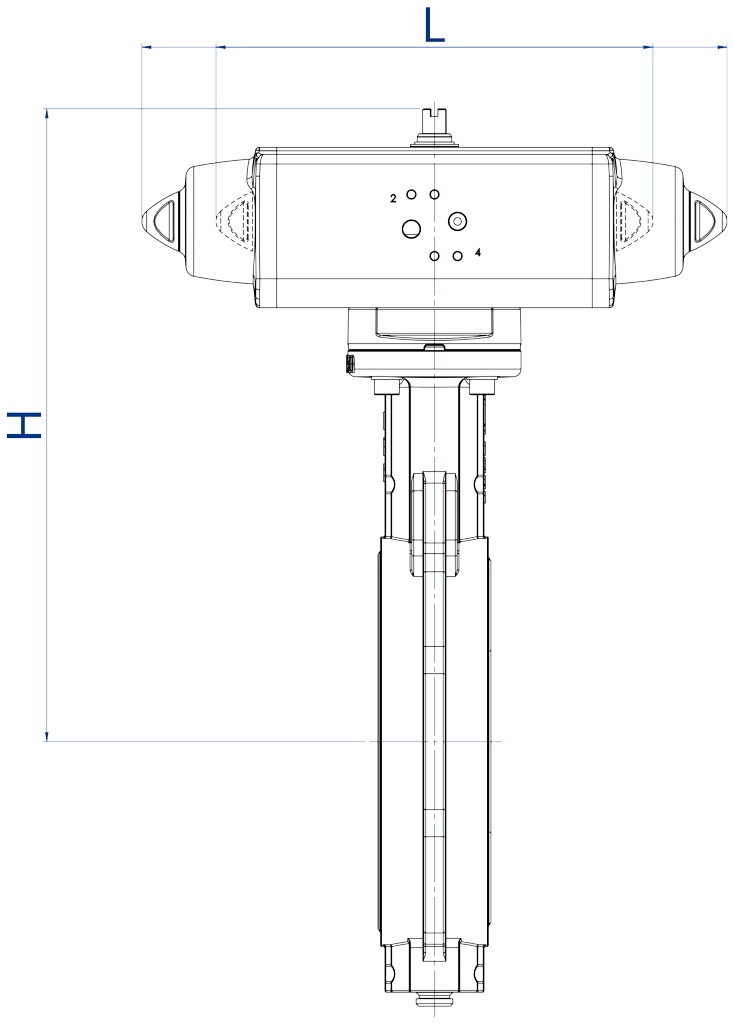

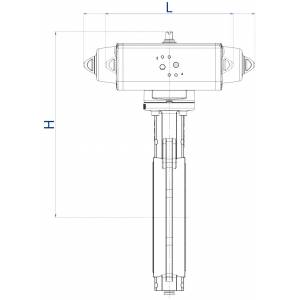

| Artigo | Tamanho | Pressão nominal | Atuador do | Válvula | Hmm] | L [mm] | Peso [kg] | Forro | Kit de montagem | |
|---|---|---|---|---|---|---|---|---|---|---|
| DG375KE75 | DN 200 8” | Bar 10 | DAN0180411S | V375XE75 | 397.7 | 289.9 | 17.9 | EPDM | KCF102900 | |
| DG375KE76 | DN 250 10” | Bar 10 | DAN0240411S | V375XE76 | 442.3 | 313.6 | 30.5 | EPDM | KCF103034 | |
| DG375KE77 | DN 300 12” | Bar 10 | DAN0360411S | V375XE77 | 487.2 | 339.3 | 41 | EPDM | KCF102901 | |
| DG375KE78 | DN 350 14” | Bar 10 | DAN0480411S | V375KE78 | 549.9 | 387.6 | 64 | EPDM | KCF123212 | |
| DG375KE79 | DN 400 16” | Bar 10 | DAN0720411S | V375KE79 | 599 | 433.1 | 91.4 | EPDM | KCF123213 | |
| DG375KE80 | DN 450 18” | Bar 10 | DAN0960411S | V375KE80 | 646 | 479.3 | 111.8 | EPDM | KCF144263 | |
| DG375KE81 | DN 500 20” | Bar 10 | DAN1440412S | V375KE81 | 690 | 567.1 | 145.8 | EPDM | KCF143215 | |
| DG375KE82 | DN 600 24” | Bar 10 | DAN1920412S | V375KE82 | 775.7 | 601 | 216.4 | EPDM | KCF164265 | |
| DG375KN75 | DN 200 8” | Bar 10 | DAN0180411S | V375XN75 | 397.7 | 289.9 | 17.9 | NBR | KCF102900 | |
| DG375KN76 | DN 250 10” | Bar 10 | DAN0240411S | V375XN76 | 442.3 | 313.6 | 30.5 | NBR | KCF103034 | |
| DG375KN77 | DN 300 12” | Bar 10 | DAN0360411S | V375XN77 | 487.2 | 339.3 | 41 | NBR | KCF102901 | |
| DG375XC68 | DN 40 1”1/2 | Bar 16 | DAN0030411S | V375XC68 | 226.4 | 174.2 | 3.2 | NBR CARBOX | KCF042895 | |
| DG375XC69 | DN 50 2” | Bar 16 | DAN0030411S | V375XC69 | 241.4 | 174.2 | 4 | NBR CARBOX | KCF042895 | |
| DG375XC70 | DN 65 2”1/2 | Bar 16 | DAN0045412S | V375XC70 | 258.7 | 188.5 | 5 | NBR CARBOX | KCF042896 | |
| DG375XC71 | DN 80 3” | Bar 16 | DAN0045412S | V375XC71 | 265.7 | 188.5 | 5.2 | NBR CARBOX | KCF042896 | |
| DG375XC72 | DN 100 4” | Bar 16 | DAN0060412S | V375XC72 | 290.4 | 198 | 6.7 | NBR CARBOX | KCF052897 | |
| DG375XC73 | DN 125 5” | Bar 16 | DAN0106411S | V375XC73 | 316 | 237 | 10.3 | NBR CARBOX | KCF072899 | |
| DG375XC74 | DN 150 6” | Bar 16 | DAN0120411S | V375XC74 | 332.2 | 244.1 | 11.8 | NBR CARBOX | KCF072899 | |
| DG375XC75 | DN 200 8” | Bar 16 | DAN0240411S | V375XC75 | 401.3 | 313.6 | 18.7 | NBR CARBOX | KCF102900 | |
| DG375XC76 | DN 250 10” | Bar 16 | DAN0360411S | V375XC76 | 449.2 | 339.3 | 31.6 | NBR CARBOX | KCF102901 | |
| DG375XC77 | DN 300 12” | Bar 16 | DAN0480411S | V375XC77 | 504.1 | 387.6 | 44.1 | NBR CARBOX | KCF122902 | |
| DG375XE68 | DN 40 1”1/2 | Bar 16 | DAN0030411S | V375XE68 | 226.4 | 174.2 | 3.2 | EPDM | KCF042895 | |
| DG375XE69 | DN 50 2” | Bar 16 | DAN0030411S | V375XE69 | 241.4 | 174.2 | 4 | EPDM | KCF042895 | |
| DG375XE70 | DN 65 2”1/2 | Bar 16 | DAN0045412S | V375XE70 | 258.7 | 188.5 | 5 | EPDM | KCF042896 | |
| DG375XE71 | DN 80 3” | Bar 16 | DAN0045412S | V375XE71 | 265.7 | 188.5 | 5.2 | EPDM | KCF042896 | |
| DG375XE72 | DN 100 4” | Bar 16 | DAN0060412S | V375XE72 | 290.4 | 198 | 6.7 | EPDM | KCF052897 | |
| DG375XE73 | DN 125 5” | Bar 16 | DAN0106411S | V375XE73 | 316 | 237 | 10.3 | EPDM | KCF072899 | |
| DG375XE74 | DN 150 6” | Bar 16 | DAN0120411S | V375XE74 | 332.2 | 244.1 | 11.8 | EPDM | KCF072899 | |
| DG375XE75 | DN 200 8” | Bar 16 | DAN0240411S | V375XE75 | 401.3 | 313.6 | 18.7 | EPDM | KCF102900 | |
| DG375XE76 | DN 250 10” | Bar 16 | DAN0360411S | V375XE76 | 449.2 | 339.3 | 31.6 | EPDM | KCF102901 | |
| DG375XE77 | DN 300 12” | Bar 16 | DAN0480411S | V375XE77 | 504.1 | 387.6 | 44.1 | EPDM | KCF122902 | |
| DG375XN68 | DN 40 1”1/2 | Bar 16 | DAN0030411S | V375XN68 | 226.4 | 174.2 | 3.2 | NBR | KCF042895 | |
| DG375XN69 | DN 50 2” | Bar 16 | DAN0030411S | V375XN69 | 241.4 | 174.2 | 4 | NBR | KCF042895 | |
| DG375XN70 | DN 65 2”1/2 | Bar 16 | DAN0045412S | V375XN70 | 258.7 | 188.5 | 5 | NBR | KCF042896 | |
| DG375XN71 | DN 80 3” | Bar 16 | DAN0045412S | V375XN71 | 265.7 | 188.5 | 5.2 | NBR | KCF042896 | |
| DG375XN72 | DN 100 4” | Bar 16 | DAN0060412S | V375XN72 | 290.4 | 198 | 6.7 | NBR | KCF052897 | |
| DG375XN73 | DN 125 5” | Bar 16 | DAN0106411S | V375XN73 | 316 | 237 | 10.3 | NBR | KCF072899 | |
| DG375XN74 | DN 150 6” | Bar 16 | DAN0120411S | V375XN74 | 332.2 | 244.1 | 11.8 | NBR | KCF072899 | |
| DG375XN75 | DN 200 8” | Bar 16 | DAN0240411S | V375XN75 | 401.3 | 313.6 | 18.7 | NBR | KCF102900 | |
| DG375XN76 | DN 250 10” | Bar 16 | DAN0360411S | V375XN76 | 449.2 | 339.3 | 31.6 | NBR | KCF102901 | |
| DG375XN77 | DN 300 12” | Bar 16 | DAN0480411S | V375XN77 | 504.1 | 387.6 | 44.1 | NBR | KCF122902 | |
